Equipment for the detoxification of dead livestock and poultry is to uniformly collect frozen pigs for collection in refrigerated trucks and transport them to the treatment center where they will automatically fall into the conveyor through the recycling platform (automatic weighing and counting devices in the conveyor will be delivered to the mechanical crusher Feeding mouth. Crushed material into the closed silo by the two closed conveyor gilt give away two sets of harmless treatment equipment for treatment of dead pigs pretreatment for the latter part of the biomass combustion charring. Pigs have a fat content of about 10%, a water content of about 75%, and the remaining organic content of about 15%. Broken dead pigs through the high-temperature cooking (energy supply from the dried residue), the entire system to achieve self-heating, no waste water generated, the reduction of carbon residue generated to 3% below the advanced harmless treatment plant.

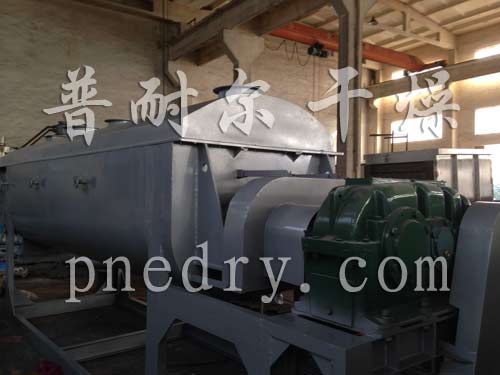

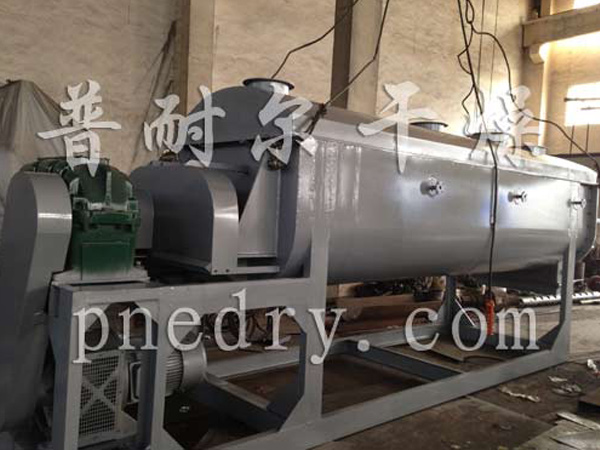

Paddle dryer can be paste, granular, powder, slurry material indirect heating or cooling, to complete the drying, cooling, heating, sterilization, reaction, low temperature combustion and other unit operations. Equipment special wedge stirring heat transfer paddle, with high heat transfer efficiency and heat transfer surface self-cleaning function.

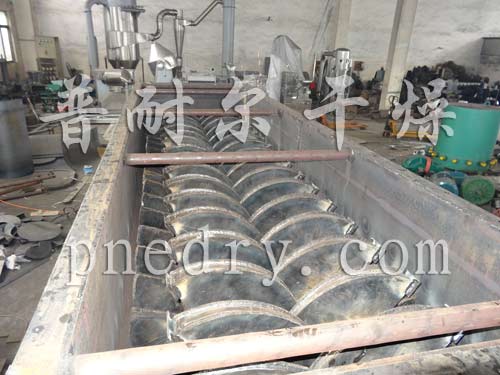

Hollow shaft dense arrangement wedge hollow blade sludge dryer, heat medium through the hollow shaft flow through the blade. Effective heat transfer area of a large unit volume, heat medium temperature from -40 ℃ to 320 ℃, can be water vapor, it can be liquid type: such as hot water, heat conducting oil. The heating medium is introduced into the shell jacket and two hollow blade shafts to heat and dry the materials in a conduction heating manner. The hollow blade shafts of different materials have different structures. Indirect conduction heating, no carrying air to carry heat, heat are used to heat the material. Heat loss is only through the body insulation to the environment of heat. Wedge paddle heat transfer surface with self-cleaning function.

The material is added by the feeding port, and the interface is updated under the agitation action of the two hollow blade shafts. At the same time, the material is pushed to the discharging port, and the dried material is discharged from the discharging port. The relative movement between the material particles and the wedge surface produces a scrubbing action that scrubs the wedged surface attachment material and keeps the clean heat transfer surface in operation. Blade dryer for the W-type shell, shell generally arranged two to four hollow mixing shaft. Shell has a sealed end caps and cover to prevent the leakage of material to fully play its role. The heat transfer medium flows through the shell jacket and the hollow stirring shaft through the rotating joint, and the hollow stirring shaft has a different internal structure according to the type of the heat medium to ensure the best heat transfer effect.

•

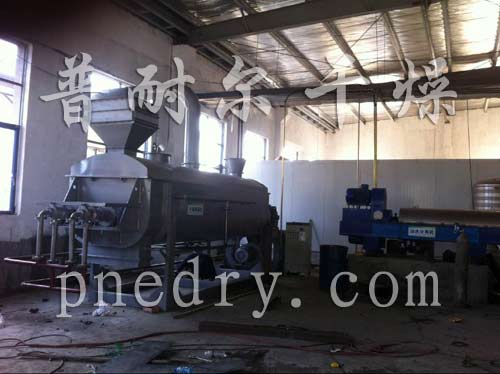

  Death poultry harmless treatment paddle sludge dryer
